Tiandy
-
Tiandy 24 Port Normal – TC-P3S027 H/2421/AT/260
The Tiandy PoE Switch – TC-P3S027 Spec:H/2421/AT/260 is a 27-port smart Power over Ethernet (PoE) switch designed for IP surveillance and network expansions.
Key Specifications- Ports: 24 × 10/100M PoE ports, 2 × 1000M Ethernet uplink ports, and 1 × 1000M SFP fiber port.
- Power Budget: Maximum 260W total PoE power.
- Switching Capacity / Bandwidth: 10.8 Gbps.
- Power Input: AC 100–240V, 50–60Hz.
- Dimensions: 320 × 207 × 45 mm.
- Weight: 1.79 kg (net).
- Operating Temperature: -10°C to 50°C.
KSh 28,188 -
Tiandy 24 Port Giga – TC-P3S028 G/2422/AT/280
The Tiandy TC-P3S028 Spec:G/2422/AT/280 is a 24-port gigabit PoE switch designed for high-bandwidth IP surveillance and network setups.
Key Specifications- Ports: 24 x 10/100/1000M PoE ports, 2 x Gigabit uplink ports, and 2 x Gigabit SFP fiber slots.
- PoE Power: Total power budget of 280W, supporting IEEE802.3af/at standards.
- Switching Capacity: 56 Gbps bandwidth performance.
- Smart Features: Supports an extend mode that lowers speed to 10M on ports 17–24 for long-distance transmission up to.
KSh 34,452 -
Tiandy 16 Port Normal – TC-P3S019 H/1621/AT/180
The Tiandy 16 Port PoE Switch (TC-P3S019 Spec:H/1621/AT/180) is a 19-port unmanaged/smart PoE switch built for IP surveillance and CCTV systems
Key Specifications- Port Configuration: 16 × 10/100Mbps PoE ports, 2 × Gigabit RJ45 uplink ports, and 1 × 1000M SFP fiber port.
- Power Budget: Total PoE power budget of 180W (max 30W per individual port).
- Standards Support: IEEE 802.3af and IEEE 802.3at PoE protocols.
- Switching Capacity: 9.2 Gbps with a packet forwarding rate of 6.84 Mpps.
- Physical Dimensions: 320 × 207 × 45 mm with a net weight of 1.61 kg
KSh 18,792 -
Tiandy 16 Port Giga – TC-P3S020 G/1622/AT/180
The Tiandy TC-P3S020 Spec:G/1622/AT/180 is a 16-port Gigabit Power over Ethernet (PoE) switch designed for high-speed network surveillance and device connectivity.
Key Specifications- Ports: 16× 10/100/1000M self-adaptive PoE ports, 2× Gigabit RJ45 uplink ports, and 2× Gigabit SFP fiber ports.
- PoE Standards: Supports IEEE 802.3af (up to 15.4W) and IEEE 802.3at (up to 30W).
- Power Budget: Maximum total PoE power budget of 180W (DC 52V output).
- Bandwidth: 40 Gbps switching capacity.
KSh 27,405 -
Tiandy 8 Port Normal – TC-P3S010 F/0820/AT/90/V2.0
The Tiandy PoE Switch TC-P3S010 Spec:F/0820/AT/90 is an 8-port 10/100Mbps Power over Ethernet (PoE) switch with two 10/100Mbps RJ45 uplink ports designed for small surveillance and office networks.
Key Specifications- Ports: 8 x 10/100Mbps PoE ports and 2 x 10/100Mbps RJ45 uplink ports.
- Standards: Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and supports IEEE 802.3af/at PoE protocols.
- Power Budget: Delivers up to 30W per port with a total PoE power budget of 90W (DC 52V output).
- Protection: Supports 4KV lightning surge protection and electrostatic ESD protection (8KV air, 6KV contact).
- Design: Compact store-and-forward switching mechanism with auto MDI/MDIX support.
KSh 6,264 -
Tiandy 8 Port Giga – TC-P3S010 G/0820/AT/110
The Tiandy 8 Port POE Gigabit Switch (TC-P3S010) is an unmanaged 8-port gigabit PoE network switch with 2 additional gigabit uplink ports designed for small-to-medium security and office network setups.
Key Specifications- Ports: 8 × Gigabit PoE ports + 2 × Gigabit uplink Ethernet ports
- PoE Budget: Maximum 110W total
- Protocols & Power: Supports IEEE 802.3af (15.4W) and IEEE 802.3at (30W) at DC 52V
- Switching Capacity: 20Gbps bandwidth
- Modes: Features an intelligent dip switch supporting Default, VLAN, and Extend modes (with automated camera watchdog enabled in VLAN/Extend modes)
- Protection: 4KV lightning surge protection and 8KV/6KV ESD electrostatic protection
KSh 10,962Tiandy 8 Port Giga – TC-P3S010 G/0820/AT/110
KSh 10,962 -
Tiandy 4 Port Normal – TC-P3S06 F/0420/AT/55/V2.0
The Tiandy PoE Switch TC-P3S06 Spec:F/0420/AT/55 is a 6-port 10/100Mbps network switch featuring 4 Power over Ethernet (PoE) ports and 2 RJ45 uplink ports.
Key Specifications- Ports: 4 × 10/100Mbps PoE ports and 2 × 10/100Mbps RJ45 uplink ports.
- Power Budget: Supports IEEE 802.3af and 802.3at standards, delivering up to 30W per port with a total power budget of 55W.
- Smart DIP Modes: Includes a 3-gear intelligent dip switch for Default (normal mode), VLAN (port isolation and watchdog), and Extend (up to 220m transmission at 10Mbps on ports 1–4).
- Protection: 4KV lightning surge protection and ESD protection (8KV air, 6KV contact).
- Dimensions: 200 mm × 118 mm × 44 mm (Weight: ~0.54 kg).
KSh 4,698 -

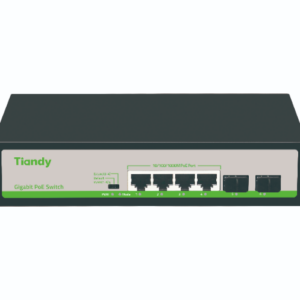

Tiandy 4 Port Giga with SFP – TC-P3S06 H/0402/AT/60/V2.0
The Tiandy TC-P3S06 4-Port PoE+ Switch (Spec: H/0402/AT/60) is a compact Gigabit network switch designed for IP cameras and small office networks.
Key Features- Ports: 4 Gigabit PoE/PoE+ ports (10/100/1000 Mbps) and 2 Gigabit SFP fiber uplink ports.
- Power Budget: Total 60W max, supporting IEEE 802.3af (15.4W) and 802.3at (30W), with Port 1 supporting up to 40W Hi-PoE/BT.
- Smart DIP Switch: One-key toggle for VLAN, Default, and Extend modes to isolate ports or increase transmission reach.
- Performance: 12 Gbps switching capacity with store-and-forward architecture and full-duplex flow control.
- Protection: Built-in 4 kV lightning surge protection and 8 kV ESD electrostatic protection.
KSh 7,830
