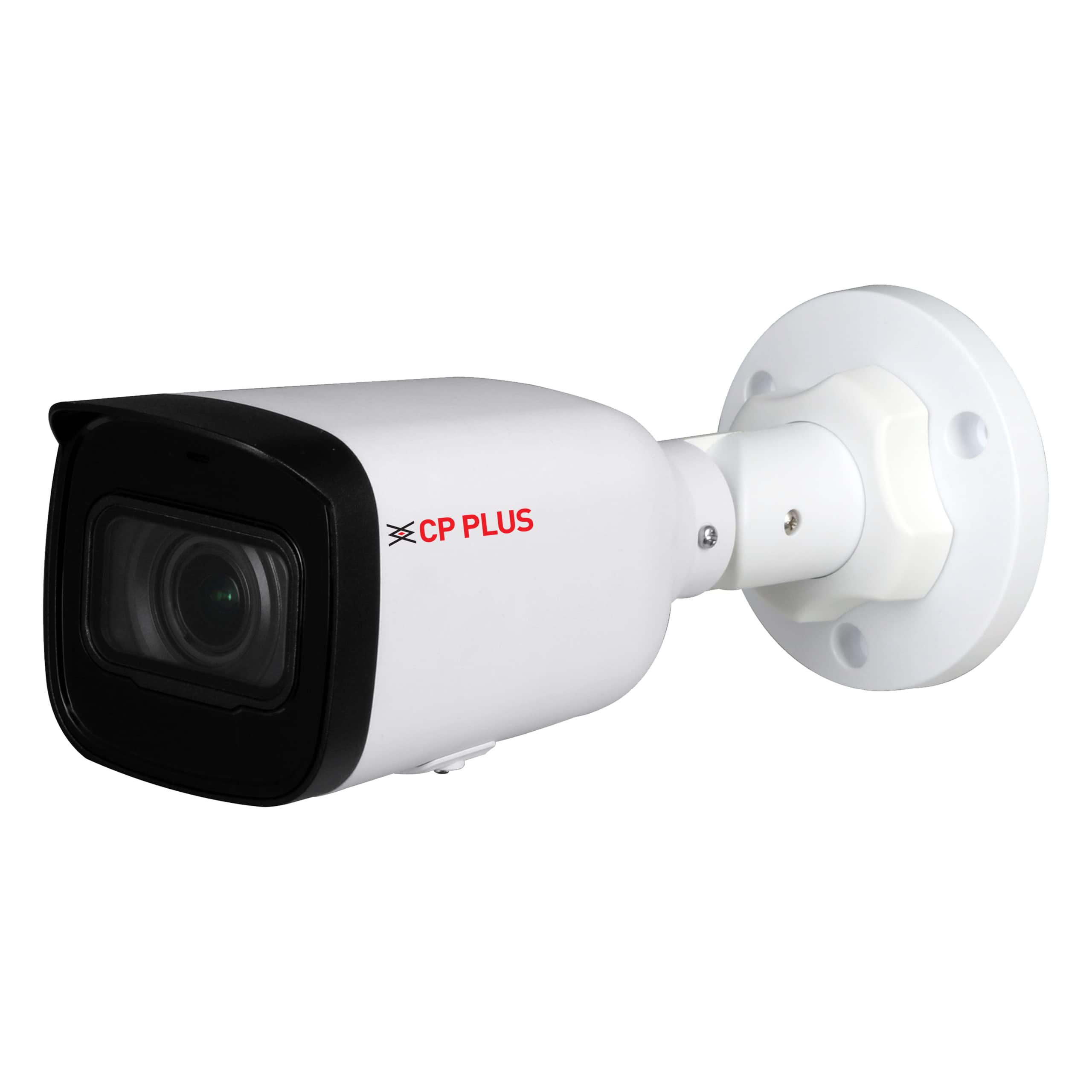

CP Plus 2.4MP Full-color Guard+ Bullet Camera – 20Mtr – CP-GPC-TA24PL2-SE-0360
Roll over image to zoom in
KSh 2,850
CP Plus 2.4MP Full-color Guard+ Bullet Camera – 20Mtr – CP-GPC-TA24PL2-SE-0360
- 1/2.8″ 2.4MP PS CMOS Image Sensor (0.9071 centimetres)
- 24/7 color imaging, Max. 25/30fps@2.4MP
- DWDR, 2D-NR, AWB, AGC, BLC
- 3.6mm (2.8mm Optional)
- Illumination Range of 20 Mtrs, IP67
- Support Full-color
- CVI/CVBS/AHD/TVI switchable
CP Plus 2.4MP Full-color Guard+ Bullet Camera – 20Mtr – CP-GPC-TA24PL2-SE-0360
| Image Sensor | 1/2.8″ 2.4MP PS CMOS (0.9071 centimetres) |
| Minimum Illumination | 0.01 Lux/F1.6, 0 Lux white light on |
| BodyType | Bullet |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Max Aperture | F1.6 |
| White Balance | Auto/Manual |
| Lens Type | Fixed-focal |
| Lens | 2.8mm (3.6mm Optional) |
| Gain Control (AGC) | Auto/Manual |
| DORI Distance | 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4mm (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify) |
| Angle of View | 2.8mm: 126.2° × 106° × 56.5° (D × H × V) 3.6mm: 103.6° × 86.9° × 46.3° (D × H × V) |
| S/N Ratio | >65dB |
| Back Light Comp. | BLC/ DWDR |
| Video Streaming | CVI: PAL: 1080p@25 fps; 720p@25 fps; NTSC: 1080p@30 fps; 720p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps ; CVBS: PAL: 960H ; NTSC: 960H |
| Privacy Mask | Off/On (8 area, rectangle) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Illumination Distance | Illumination Range of 20 Mtr. |
| Operating Temperature | -40°C ~ +60°C (-40°F to 140°F) / <95% RH (non-condensation) |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 3.1 W (12 V DC, White light on) |
| Weatherproof Standard | IP67 |
| Dimension | 161.3 mm × 69.7 mm × 70.0 mm |
| Casing | Metal + Plastic |
| Weight | 0.28kg |
